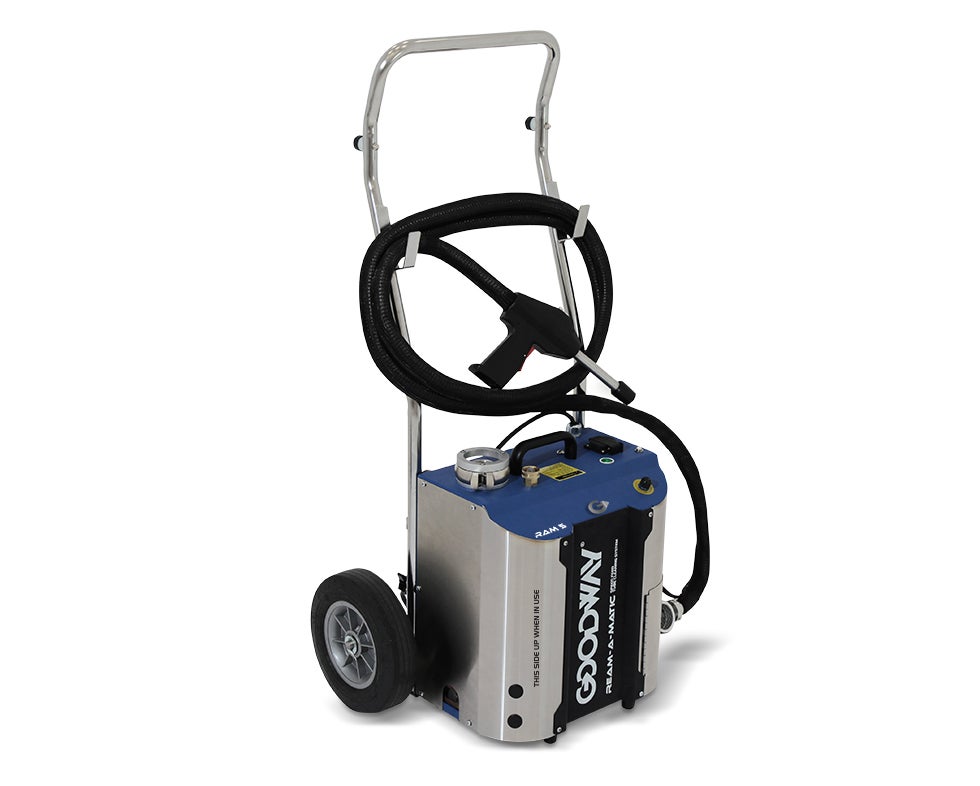

RAM-5 Chiller Tube Cleaner, Speed-Feed/Variable Speed
• RAM-5DC-ID-60
-
Overview
Product Overview
Why spend extra time cleaning tubes? With patented technology and years of proven performance, the RAM 5 speed feed tube cleaner is the choice for contractors and facility managers with large tube bundles.
RAM 5 features a sleek modern design, improved portability, and intuitive controls. With a pull of the trigger, the revolutionary Speed Feed gun fires the shaft quickly into the tube, eliminating manual feeding of the shaft. Plus, it allows you to dial in the optimal brush rotation speed and shaft feed rate for better cleaning of straight or enhanced tubes. Additionally, the quick connect shaft and brush connections make changes faster than ever.
These innovative features, plus integrated water flush and industrial-strength construction, combine to clean tubes up to 4X faster than other rotary tube cleaners. For cleaning tubes 1/4" to 1" I.D.
The NEWS 2023 Dealer Design Awards Winner of Gold for HVAC Commercial Equipment.
What's Included
RAM-5 Automatic Chiller Tube Cleaner includes:
- RAM-5 Speed-Feed Tube Cleaner 1HP (0.6 kW)
- Speed-feed gun 15' (4.6m)
- Guide hose
- One set of shaft feeder gears
- Mobile dolly with tool storage box
- Foot-switch.
Note: Shafts, brushes, and other accessories sold separately.
-
Features & SpecsFeatures
Product Features
- Larger wheels for improved mobility
- Sleek, modern design
- Intuitive easy-to-use controls
- Variable speed up to 3' (0.9m) per second - reduced labor
- Simple to operate - minimal training required
- Stainless steel construction - long life
- Interchangeable cleaning tools - versatile
- Large wheels - easy to move
- Simultaneous water flush - removes deposits
- Trigger controlled operation - increased productivity
- Flexible Shaft speed: Up to 862.5 rpm
- Speed-Feed Gun rate: Up to 3' (0.9m) per second
- Speed-Feed Gun push/pull force: 50 lbs (222 N)
- Motor power: 1 HP (0.6 kW)
- Input power: Standard: 12 amps, 115 V, 60 Hz AC (Optional: 12 amps, 115 V, 50 Hz; 6 amps, 230 V, 60 Hz; or 6 amps, 230 V, 50 Hz)
- Dimensions: (excluding gun and guide hose): 37" (940mm) high x 20" (510mm) wide x 17" (430mm) deep ·
- Weight: 75 lbs (34 kg) net dry
- RAM-5 is CE certified
-
